Design Considerations For Powder Coating Systems
Designing a powder coating system involves much more than selecting a powder booth and cure oven. Every component must work together to support your production goals, part requirements, quality standards, available space, labor needs, and long-term growth.
A properly designed system can help improve finish quality, increase throughput, reduce operating costs, simplify material handling, and provide greater control over the coating process. A poorly planned system can create bottlenecks, limit capacity, increase labor, and make future expansion more difficult.
At Midwest Finishing Systems, we design and manufacture custom turnkey powder coating systems for manufacturers, fabricators, and custom coaters. Each system is engineered around the products being coated and the way the facility needs to operate.
| Design Factor | Question to Consider | Why It Matters |
|---|---|---|
| Part Size & Weight | How large and heavy are your parts? | Determines equipment dimensions and material handling requirements |
| Production Volume | How many parts must be coated per hour or shift? | Helps determine batch vs. automated system design |
| Part Variety | Are parts similar or highly variable? | Affects system flexibility and equipment selection |
| Pretreatment | What cleaning and preparation do parts require? | Proper pretreatment is critical to coating performance |
| Powder Application | Manual, automatic, or both? | Impacts throughput, labor, consistency, and powder usage |
| Curing | What time and temperature does the coating require? | Influences oven size, heating capacity, and production speed |
| Material Handling | How will parts move through the system? | Determines conveyor, monorail, cart, or other handling requirements |
| Floor Space | How much space is available? | Influences system layout and equipment configuration |
| Future Growth | Could production requirements increase? | Helps prevent designing a system that is quickly outgrown |
1. Start With Your Parts
The products being finished should drive the powder coating system design.
Consider the largest and smallest parts, maximum weight, part geometry, material, and product mix. A system designed around actual production requirements can improve efficiency while avoiding unnecessary equipment or capacity.
2. Determine Your Production Requirements
Production volume is one of the biggest factors when choosing between a batch powder coating system and an automated powder coating system.
Batch systems can provide flexibility for lower volumes, varying part sizes, and large or heavy products. Automated systems are generally better suited for higher production volumes and consistent product flow.
3. Plan the Complete Finishing Process
A powder coating system is more than a powder booth and cure oven. A complete system may include:
Pretreatment → Dry-Off → Powder Application → Cure → Cooling
Each stage needs to work together. Proper equipment sizing and process timing help maintain production flow and consistent finish quality.
4. Consider Material Handling Early
How parts move through the system can influence nearly every other design decision.
Part weight, dimensions, production speed, loading requirements, and facility layout should be considered when selecting conveyors, monorails, carts, racks, or other material handling equipment.
5. Evaluate Your Facility
Available floor space, ceiling height, building columns, utilities, loading areas, and existing production equipment can all influence system layout.
Planning around these conditions early can help create a powder coating system that integrates efficiently into your manufacturing operation.
6. Design for Tomorrow's Production
A powder coating system is a long-term investment. Designing only for today's production requirements can limit your operation as demand changes.
Consider potential increases in production volume, new products, larger parts, additional shifts, automation, and other future requirements during the initial design process.
Choosing the Right Powder Coating System Design
There is no single powder coating system design that works for every manufacturer.
The right solution balances:
- Part size and weight
- Production volume
- Finish requirements
- Pretreatment needs
- Material handling
- Available floor space
- Labor requirements
- Energy efficiency
- Future growth
Custom Powder Coating Systems from Midwest Finishing Systems
Midwest Finishing Systems designs and manufactures custom turnkey powder coating systems around each manufacturer's specific products, production requirements, facility, and long-term goals. From pretreatment and ovens to powder application, material handling, controls, installation, and ongoing support, our team can develop a complete finishing solution designed to work as one integrated system.

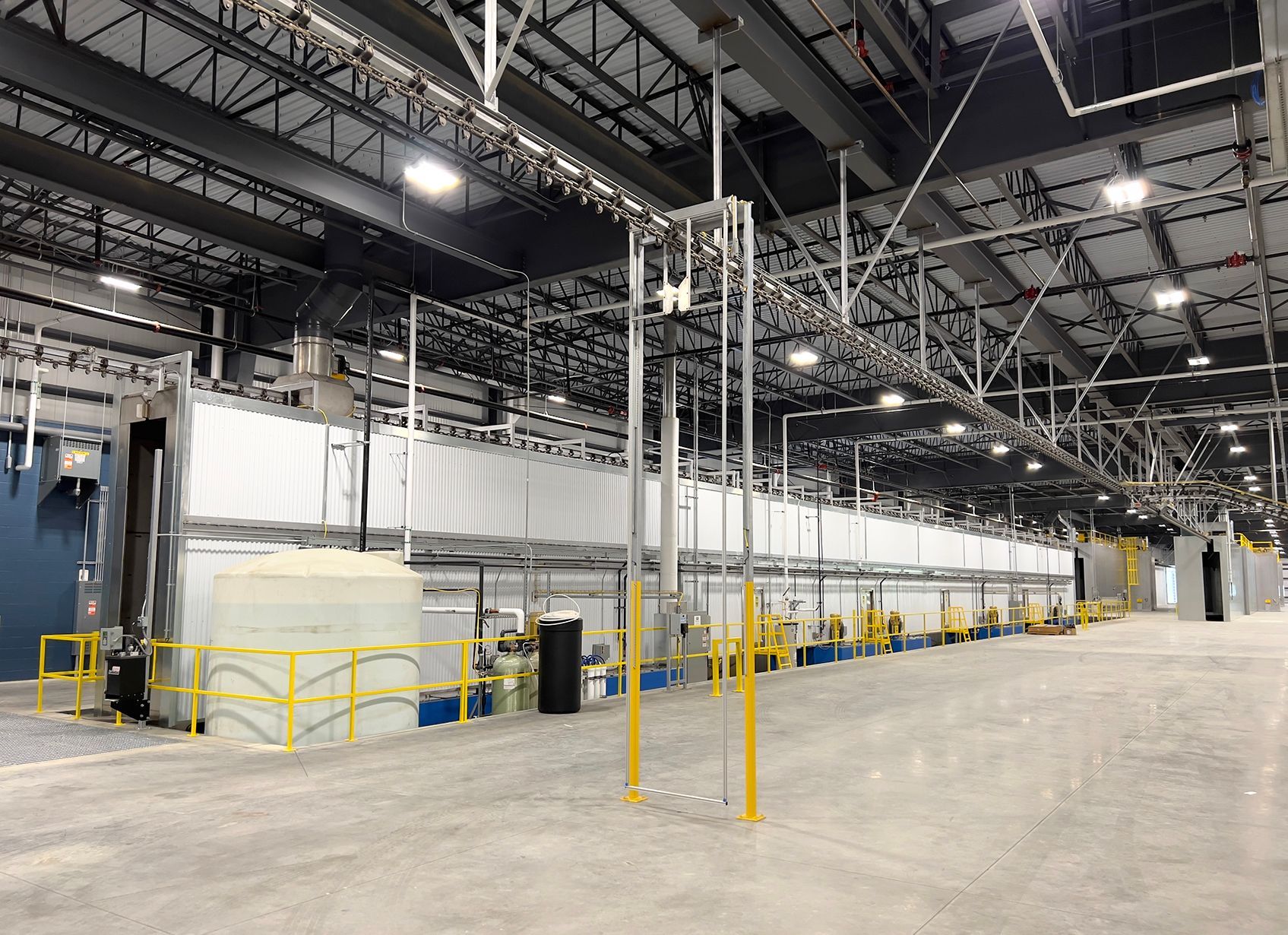

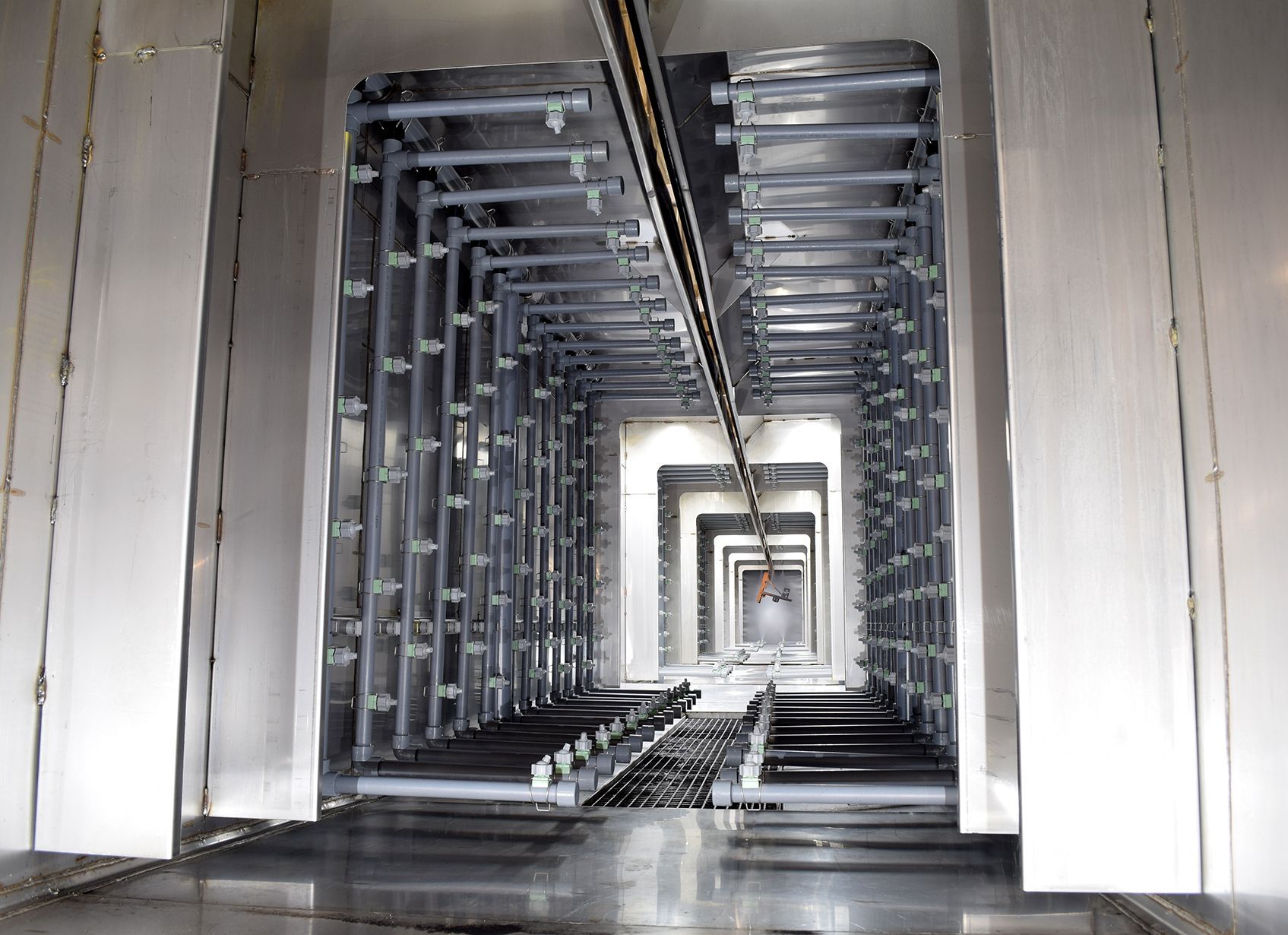

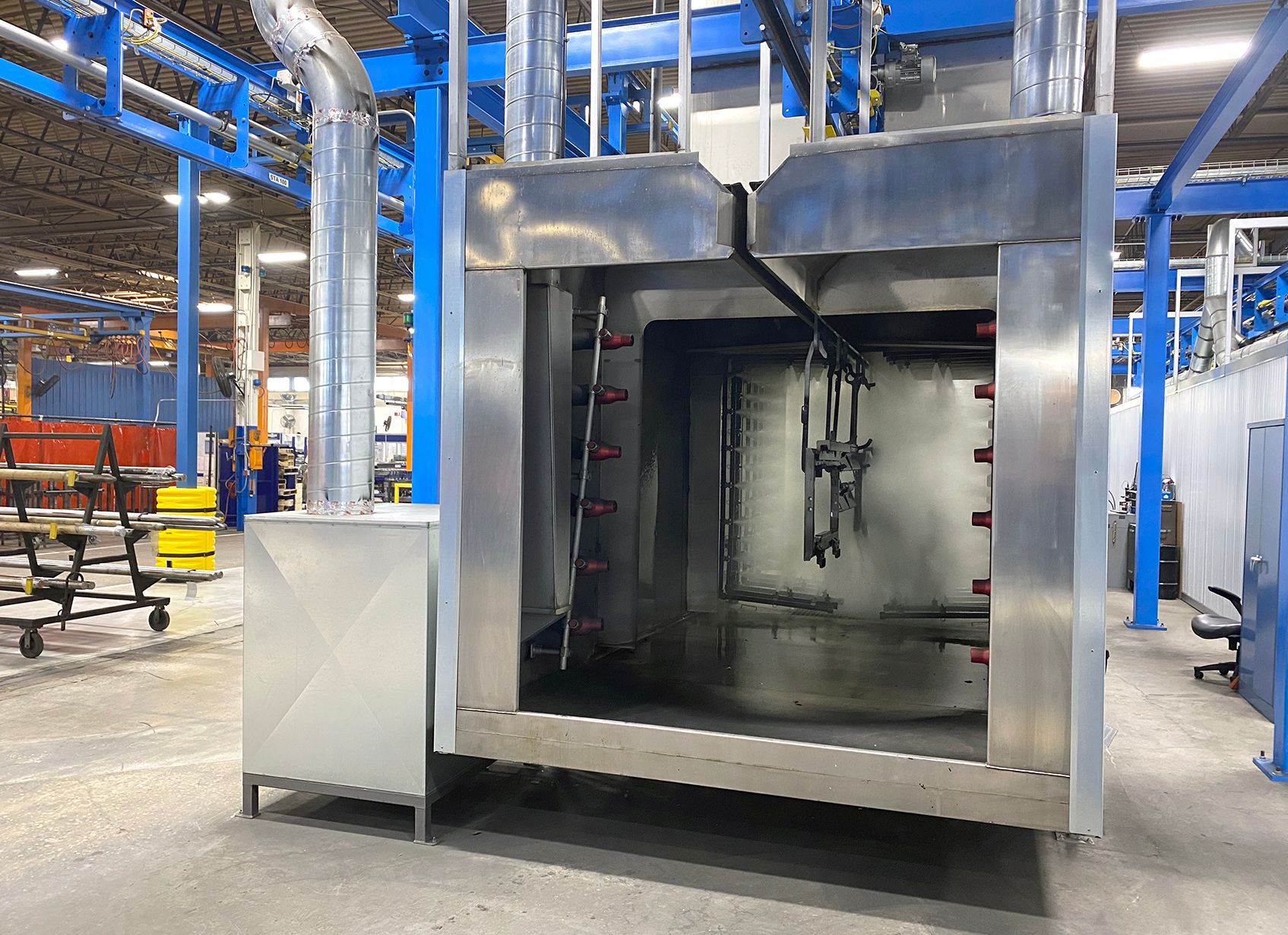

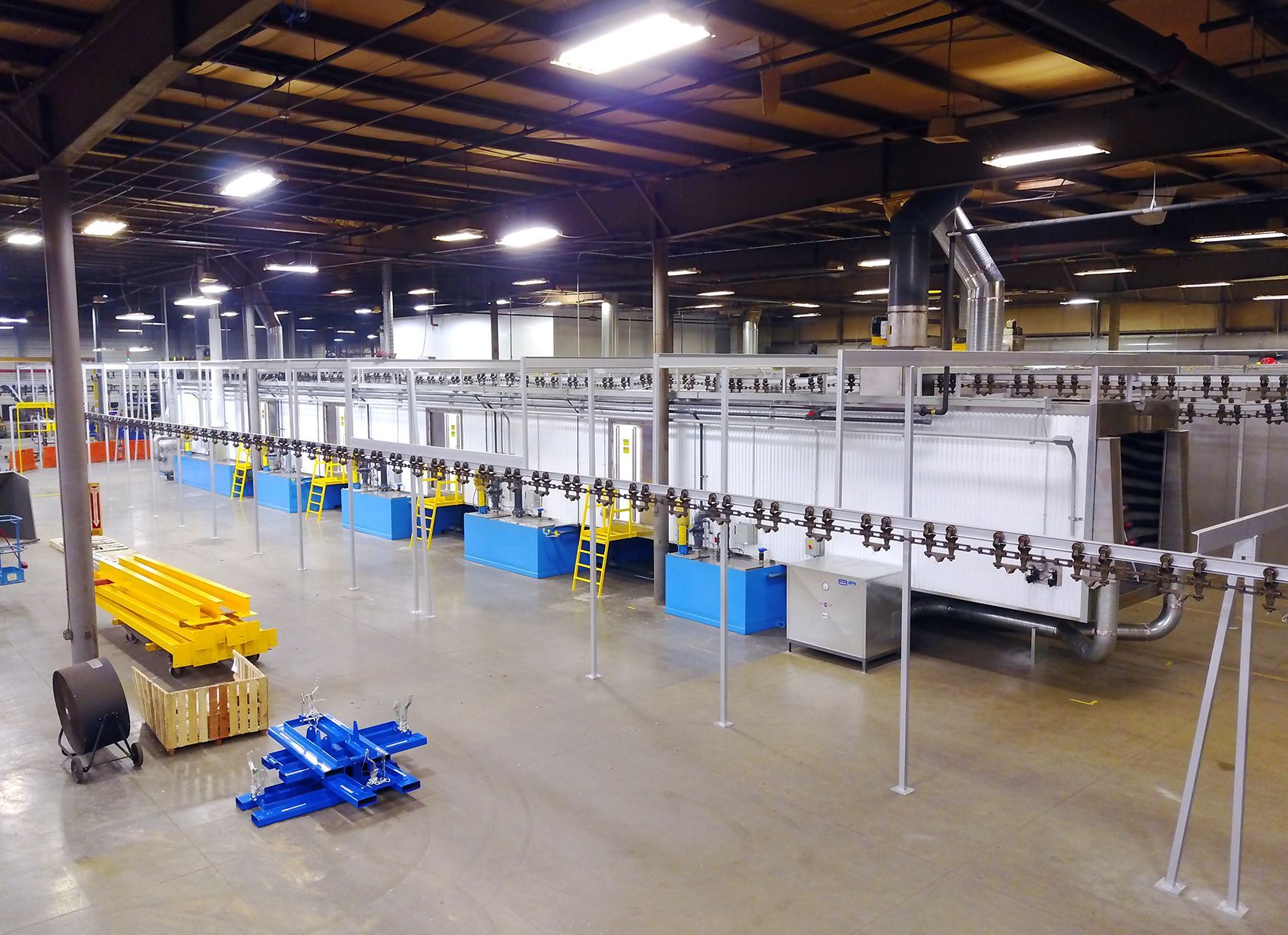

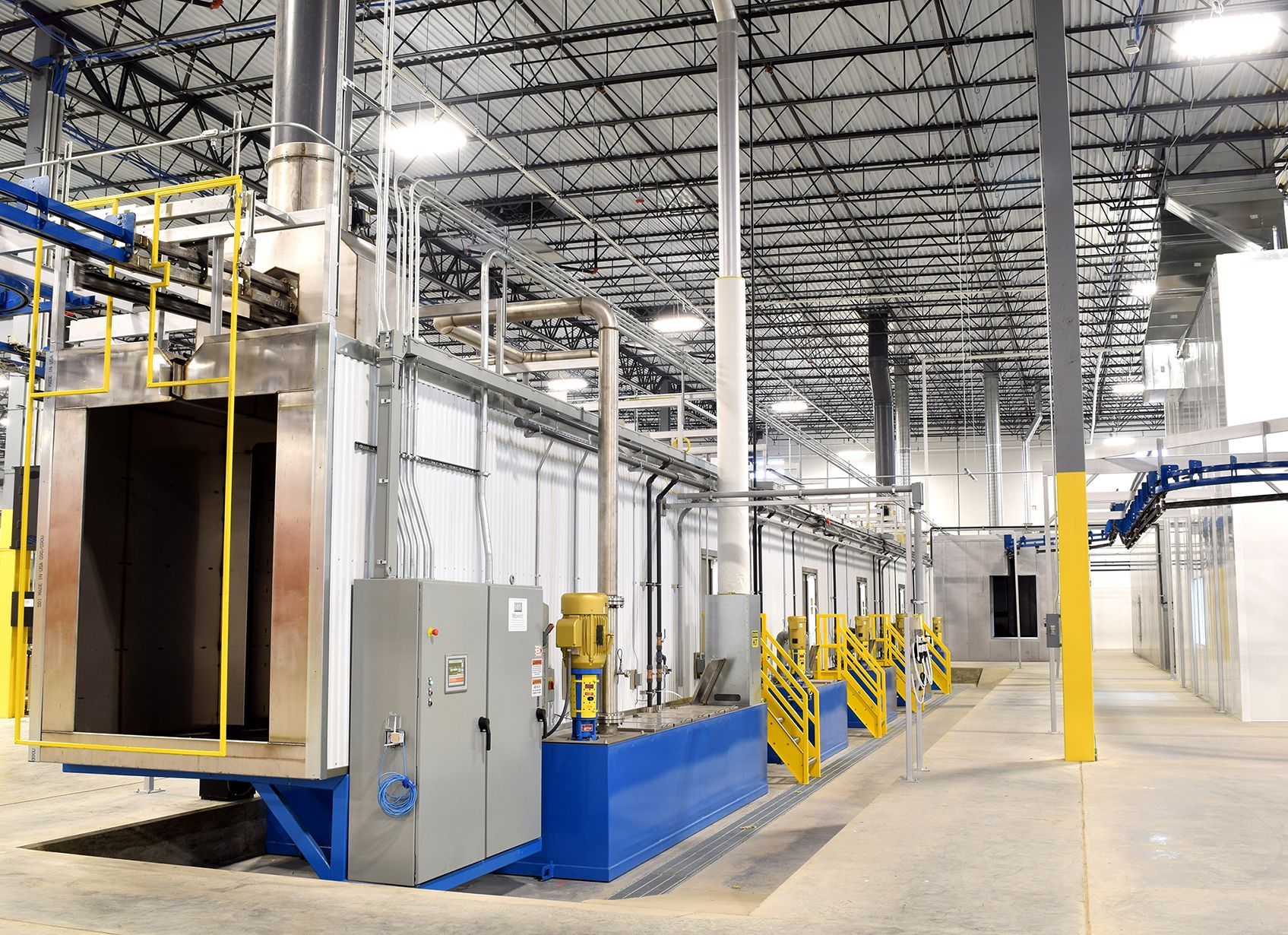

Washer Features
Midwest Finishing pretreatment washers range from simple single-stage modules to large multi-stage systems depending on the part's soil level and required coating quality. They are built in modular form for quick installation and less downtime in your facility. We incorporate stainless steel parts for durable performance and long life providing distinct advantages over composite and polypropylene washers. Our exclusive insulation packages are designed to save up to 49% on your system's energy usage over non-insulated equipment.
- Unique modular design with quick installation
- Factory tested prior to shipment
- Modules arrive on-site pre-wired and plumbed
- Long life stainless steel components
- Smooth wall interior
- Insulated tanks & upper housing
Check out additional finishing system components:
What is a pretreatment washer in a powder coating system?
A pretreatment washer is the first major process in a powder coating system. It removes oils, dirt, machining fluids, and other contaminants while preparing the metal surface for powder application. Proper pretreatment improves powder adhesion, enhances finish quality, and significantly increases corrosion resistance and long-term durability.
Why is pretreatment important before powder coating?
Pretreatment creates a clean, chemically prepared surface that allows powder coating to bond properly to the metal. Without proper pretreatment, coatings are more likely to experience adhesion failures, premature corrosion, blistering, or peeling. A properly designed pretreatment process is one of the most important factors in achieving a high-quality, long-lasting finish.
How many stages does a pretreatment washer need?
The number of pretreatment stages depends on the substrate, contamination level, corrosion protection requirements, and customer specifications. Some applications require a simple single-stage cleaning process, while others use multi-stage systems with cleaning, rinsing, phosphate or zirconium conversion coating, sealing, and final rinses to maximize coating performance.
What are the benefits of a modular pretreatment washer?
Modular pretreatment washers reduce installation time because they are factory assembled, pre-wired, and pre-plumbed before shipment. This approach minimizes disruption at the customer's facility, simplifies installation, improves quality control, and allows for easier future expansion as production needs grow.
How does a pretreatment washer improve corrosion resistance?
A properly designed pretreatment process removes contaminants and applies a conversion coating that enhances powder coating adhesion and protects the metal substrate. This significantly improves corrosion resistance, increases salt spray performance, extends product life, and helps finished parts withstand demanding indoor and outdoor environments.
